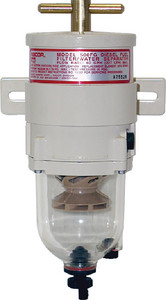

RACOR 500FG2 FILTER-TURBINE CLEAR 60 GPH 2M
$359.99
Retail price is shown. * Add this item to the Shopping Cart to see your reduced price.
Product Description: Racor 60 GPH Turbine Fuel Filter/Water Separator w/Clear Bowl, 2 Micron Turbine series filter assemblies are designed to be installed on the vacuum side of the fuel transfer pump for best efficiency and protect precision engine components from dirt, rust, algae, asphaltines, varnishes, and especially water. They remove contaminates from fuel using the following three stage process:
Stage One: Separation as fuel enters the filter assembly, it moves through the centrifuge and spins off large solids and water droplets which fall to the bottom of the collection bowl.
Stage Two: Coalescing small water droplets bead-up on the surface of the conical baffle and cartridge element. When heavy enough, they too fall to the bottom of the bowl.
Stage Three: Filtration proprietary Aquabloc® II cartridge elements repel water and remove contaminants from fuel down to two micron (nominal). They are waterproof and effective longer then water absorbing elements.
Turbine series filters are available in sizes to fit any application, are easy to service, are rated for 25psi max pressure, and feature a self-venting water drain. FG & FH models offer a clear, see-thru bowl. ALT Part Numbers: RAC 500FG2, 85-7231
Product Description: Racor 60 GPH Turbine Fuel Filter/Water Separator w/Clear Bowl, 2 Micron Turbine series filter assemblies are designed to be installed on the vacuum side of the fuel transfer pump for best efficiency and protect precision engine components from dirt, rust, algae, asphaltines, varnishes, and especially water. They remove contaminates from fuel using the following three stage process:
Stage One: Separation as fuel enters the filter assembly, it moves through the centrifuge and spins off large solids and water droplets which fall to the bottom of the collection bowl.
Stage Two: Coalescing small water droplets bead-up on the surface of the conical baffle and cartridge element. When heavy enough, they too fall to the bottom of the bowl.
Stage Three: Filtration proprietary Aquabloc® II cartridge elements repel water and remove contaminants from fuel down to two micron (nominal). They are waterproof and effective longer then water absorbing elements.
Turbine series filters are available in sizes to fit any application, are easy to service, are rated for 25psi max pressure, and feature a self-venting water drain. FG & FH models offer a clear, see-thru bowl. ALT Part Numbers: RAC 500FG2, 85-7231
Current Stock:
SKU:
62-500FG2
Weight:
5.00 LBS
Width:
12.00
(in)
Height:
7.00
(in)
Depth:
6.00
(in)
Warranty:
Important Note for Boat, Engine and Generator Parts: The responsibility for the accuracy of your order rests with you, the customer. If you have any question as to whether or not the part you are ordering is the right one for your boat/engine/generator, please do not hesitate to call us immediately at 321-952-1303 Monday-Friday 8-5pm. This is important to save both time and money. Carp Coastal Marine will be responsible for any mistakes that we make. However, if you make the decision without consult from us, then restocking and freight charges will be added to your order.
