Product Details

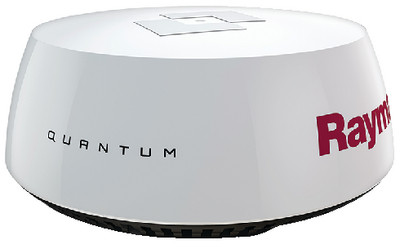

Product Description: Raymarine E70210 Quantum™ Wireless CHIRP Radome w/Wi-Fi & Data w/Power Cable Quantum Radar is the world's first compact marine radar to use CHIRP pulse compression technology. Setting a new standard for solid state marine radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi makes installation easy and Quantum's energy effcient and lightweight design provides safe radiated emissions and reduced power consumption.
- Input Voltage: 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V)
- Networking: Wi-Fi or wired Ethernet (RayNet)
- Antenna Type: Patch Array
- Power Consumption: Transmit mode 17W; standby mode 7W; sleep mode 2W
- Max. Range Scale: from 1/16 to 24 nautical miles
- Transmit Frequency: 9354 to 9446 MHz
- Peak Power Output: 20W
- Duplexer: Circulator
- Pulse Widths (3 dB): 40 ns to 14.7 ?s
- CHIRP Lengths: 400 ns to 20 ?s
- CHIRP Bandwidth: Up to 32 MHz
- IF Bandwidth: 26 MHz
- Noise: Less than 4 dB
- Beamwidth (nominal): 4.9° horizontal and 20° vertical
- Polarisation: Horizontal
- Waterproofing: IPX6
