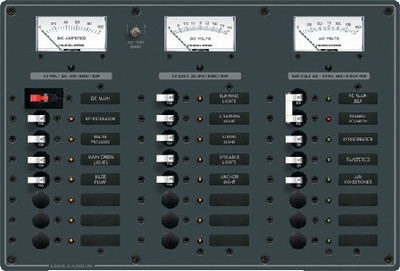

BLUE SEA SYSTEMS 8084 PANEL 8XVAC/16X12VCDC 24 POS.

$1,226.99

Product Description: Blue Sea Systems 8084 AC Main + 6 Positions/DC Main + 15 Positions Circuit Breaker Panel Includes set of 30 common AC and 30 common DC labels

All AC and DC buses installed, fully pre-wired
Label backlighting pre-installed
All LEDs installed
Maximum panel Amperage: 100 Amps DC / 30 Amps AC

AC Features

Red reverse polarity indicating LED
Ready for installation of optional 4029 AC Isolation Cover
9353, 0-150 volt AC voltmeter

DC Features

100 amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
8003, 8-16 volt DC voltmeter
8017, 0-100 amp DC mmeter
Owner upgradeable to 24 volts with 8240, 18-32 volt DC voltmeter

ALT Part Numbers: BLU 8084, 02-9803

Current Stock:

SKU:

661-8084

Weight:

6.20 LBS

Width:

22.00 (in)

Height:

14.00 (in)

Depth:

6.00 (in)
