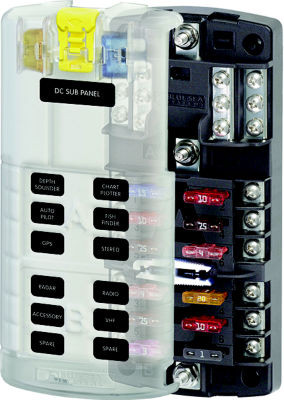

BLUE SEA SYSTEMS 5032 FUSE BLOCK STB SPLITBUS 12CIR

$102.89

Retail price is shown. * Add this item to the Shopping Cart to see your reduced price.

Product Description: Blue Sea Systems ST Blade Split Bus Fuse Bock, 12 Circuit Two isolated 6-circuit fuse blocks with a negative bus. For use when a mix of switched and 24-hour circuits are desired in the same block.

Common and/or independent source fuse block
Provides two isolated groups of six ATO^®/ATC^® circuits
For use with either two isolated batteries or with a single battery providing a mix of 24-hour and switched circuits
Clear insulating cover satisfies ABYC/USCG insulation requirements and provides storage for two spare fuses
Accepts ring terminals
Easy to open, push button latch provides easy access to fuses
Tin-plated copper buses and fuse clips
Includes 20 write-on circuit labels
Fuses sold separately

Specifications

Voltage Max. Operating: 32V DC
Amperage Max. Operating: 30A per circuit 100A total (not to exceed 80A per load group)
Fuse Type: ATO^® or ATC^® Fuses
Screw Terminal: #8-32 Screws with captive star lock washer
Mounting: #8 Screw (M4)
Recommended Wire Size: Positive Feed: 4-6 AWG (25-16 mm²), Branck Circuits: 10-16 AWG (6-15 mm²)
Recommended Torque: #10 Stud: 24 in-lb (2.71 N-m), #8 Screw: 18 in-lb (2.03 N-m)

ALT Part Numbers: BLU 5032, 36-9121

Current Stock:

SKU:

661-5032

Weight:

0.15 LBS

Width:

11.00 (in)

Height:

7.00 (in)

Depth:

2.00 (in)

Warranty:
