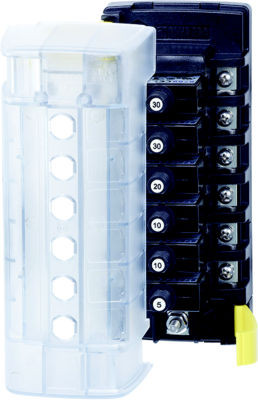

BLUE SEA SYSTEMS 5052 BRKR BLOCK ST CLB 6CIRC W/GND
$84.19
Retail price is shown. * Add this item to the Shopping Cart to see your reduced price.
Product Description: Blue Sea St Clb Push Button Circuit Breaker Block
Product Description: Blue Sea St Clb Push Button Circuit Breaker Block
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open cover clip
- Two breakouts for wire access
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
- Voltage Max 32V DC
- Amperage Max 32A (per circuit)
- Amperage Max 100A (per block-common source)
- Amperage Max 40A (per jumped circuit group-independent source)
Current Stock:
SKU:
661-5052
Weight:
0.15 LBS
Width:
10.00
(in)
Height:
4.00
(in)
Depth:
3.00
(in)
Warranty:
Important Note for Boat, Engine and Generator Parts: The responsibility for the accuracy of your order rests with you, the customer. If you have any question as to whether or not the part you are ordering is the right one for your boat/engine/generator, please do not hesitate to call us immediately at 321-952-1303 Monday-Friday 8-5pm. This is important to save both time and money. Carp Coastal Marine will be responsible for any mistakes that we make. However, if you make the decision without consult from us, then restocking and freight charges will be added to your order.
Shipping Cost:
Calculated at Checkout
